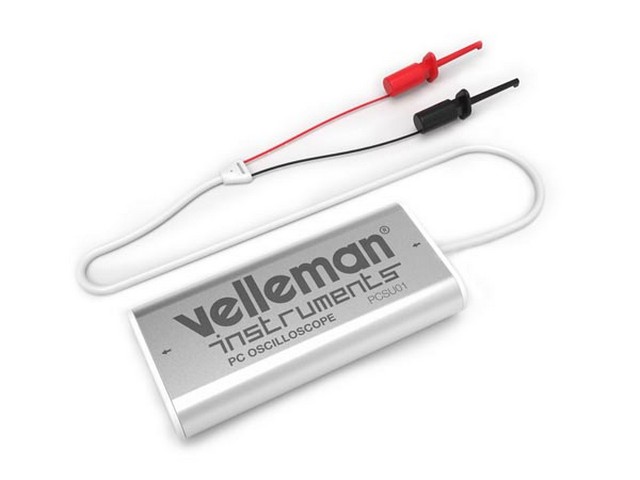

Oscilloscopes are expensive and complicated instruments? Not this one!
This small and easy to use 2 channel oscilloscope has all the features of a full blown oscilloscope and it also has a bandwidth of 500 kHz ±3 dB!

Complete with instructions (download), test leads and software (download) and it comes in a design enclosure.

Features

• test leads
• software download
• USB cable included
• design enclosure

Specifications

• oscilloscope:
  • bandwidth: DC to 2 x 500 kHz ±3 dB
  • input impedance: 100 kO /20 pF
  • maximum input voltage: 30 V(AC + DC)
  • time base: 5 µs to 500 ms per division
  • input range: 100 mV to 5 V/division
  • input sensitivity: 3 mV display resolution
  • readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
  • record length: 2 x 1k samples
  • sampling frequency: 50 Hz to 2.5 MHz
  • sample history function
  • auto set-up function
  • pre-trigger function: on 50 µs/div .. 500 ms/div ranges
  • persistence options: colour graded, variable and infinite
• spectrum analyzer:
  • frequency range: 0 .. 125 Hz to 125 kHz
  • operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 512 lines
• transient recorder:
  • timescale: 20 ms/div to 2000 s/div
  • max. recording time: 9.4 h/screen
  • automatic storage of data
  • record and display of screens
  • max. number of samples: 100/s
  • min. number of samples: 1 sample/20 s
• general information:
  • markers for: amplitude/voltage and frequency/time
  • input coupling: DC and AC
  • 8 bit resolution
  • storage of display and data
  • dimensions: 85 x 40 x 14 mm
• minimum system requirements:
  • Windows® XP, Vista, 7, 8 and 10
  • mouse (or mouse pad)
  • free USB port 1.1 or 2.0
